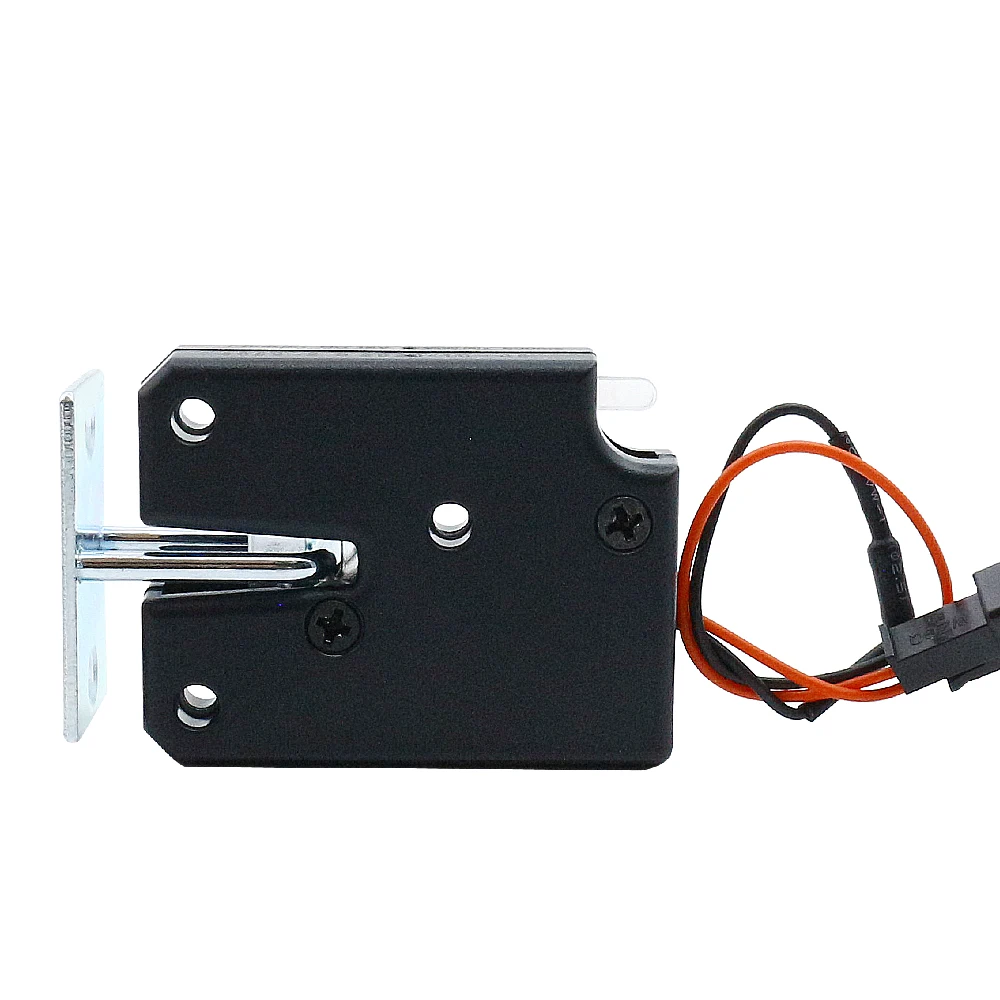

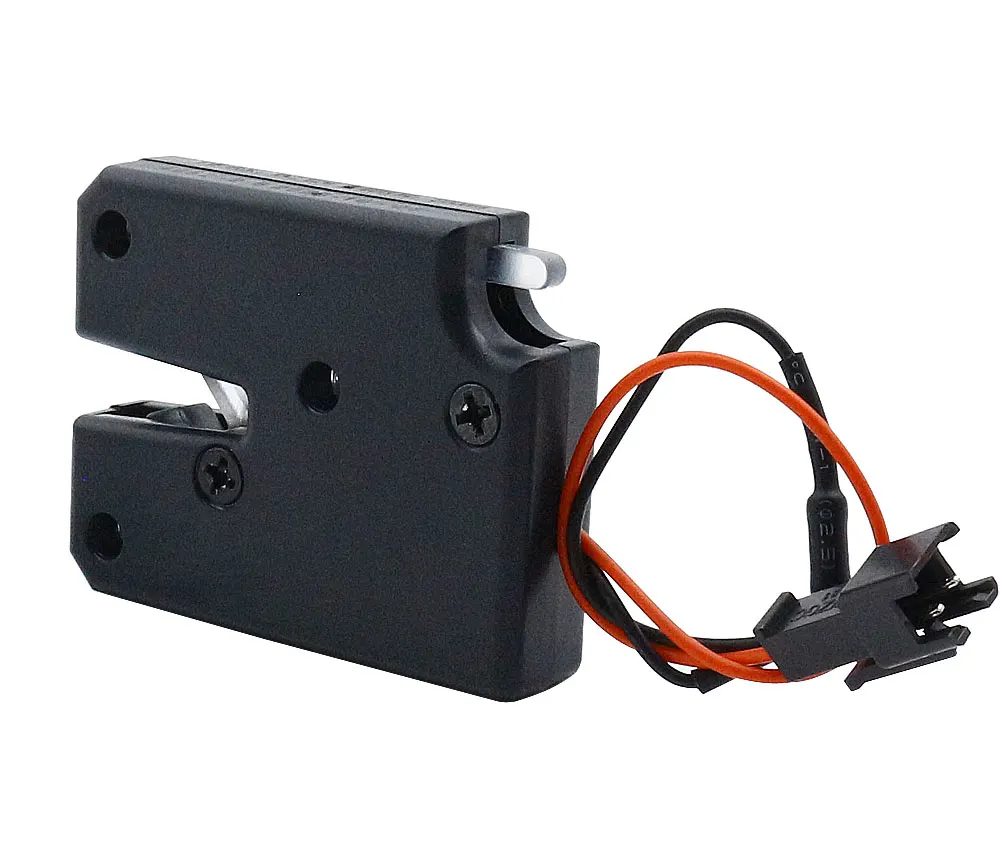

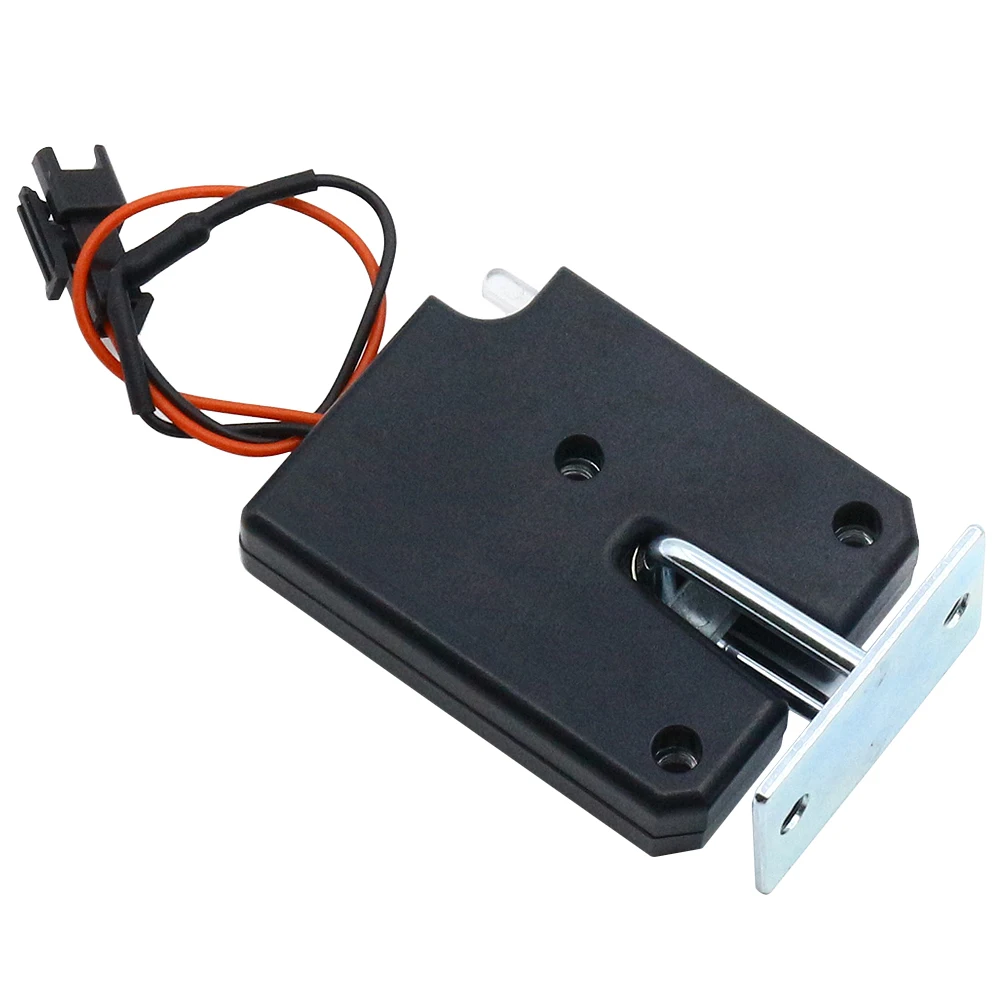

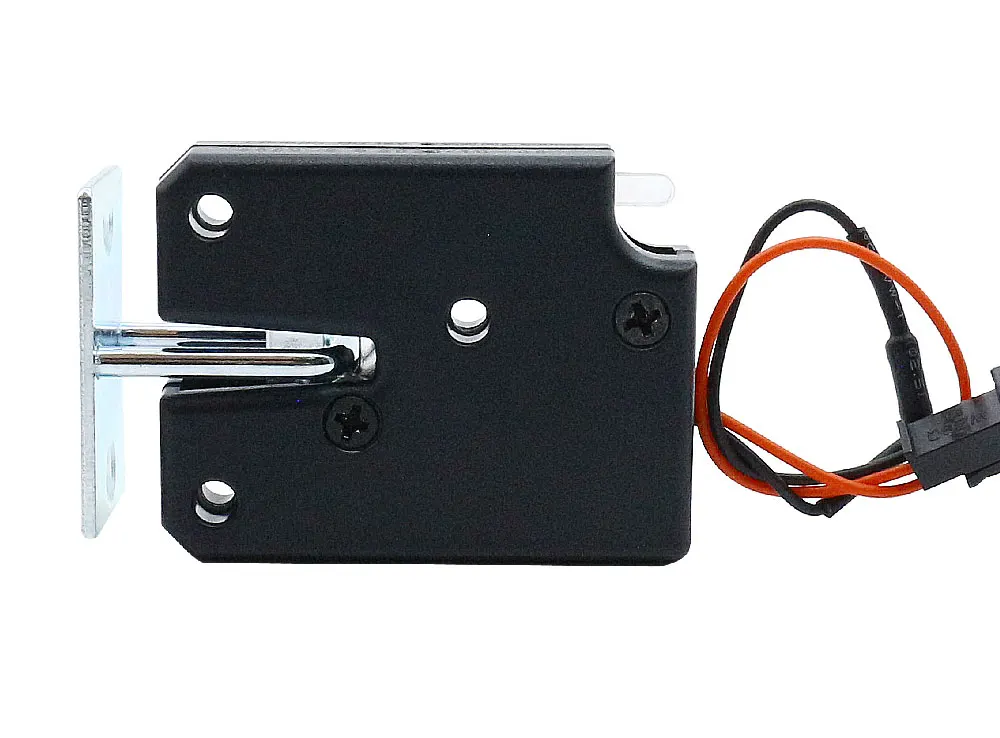

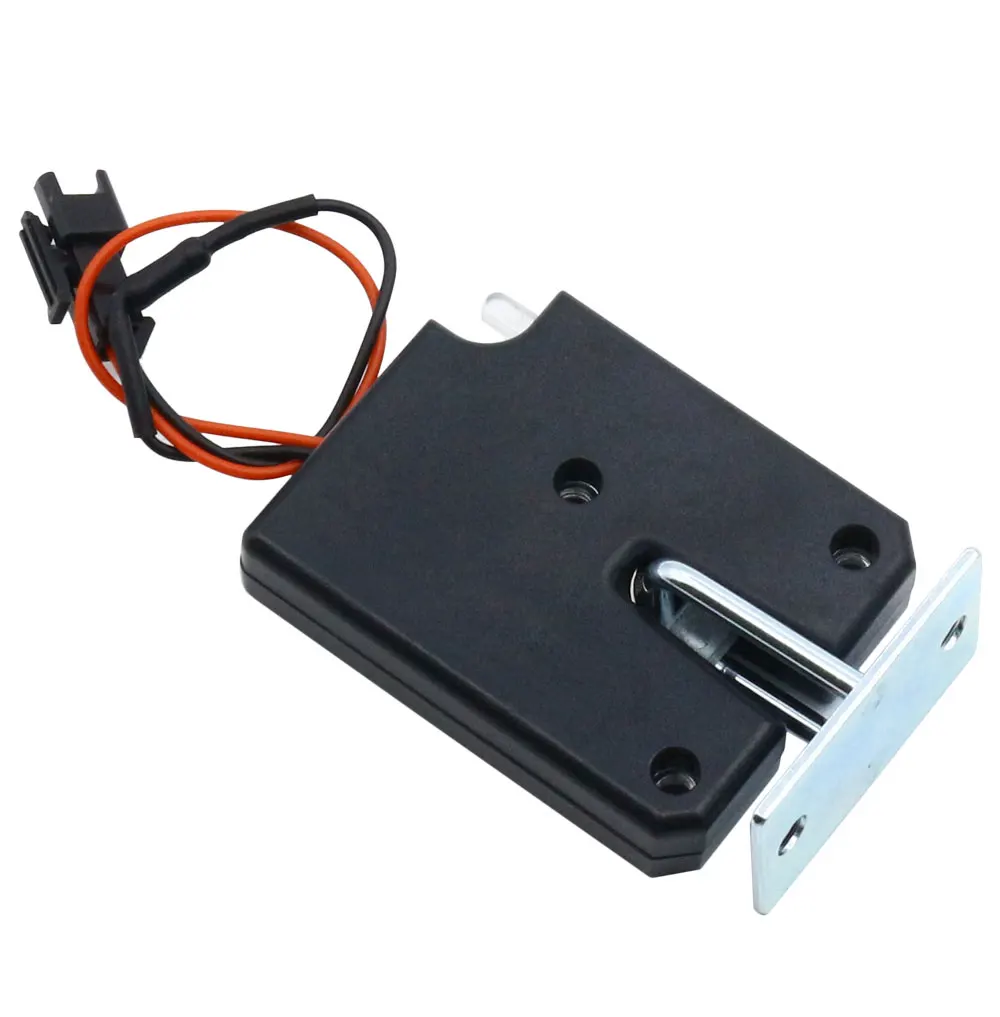

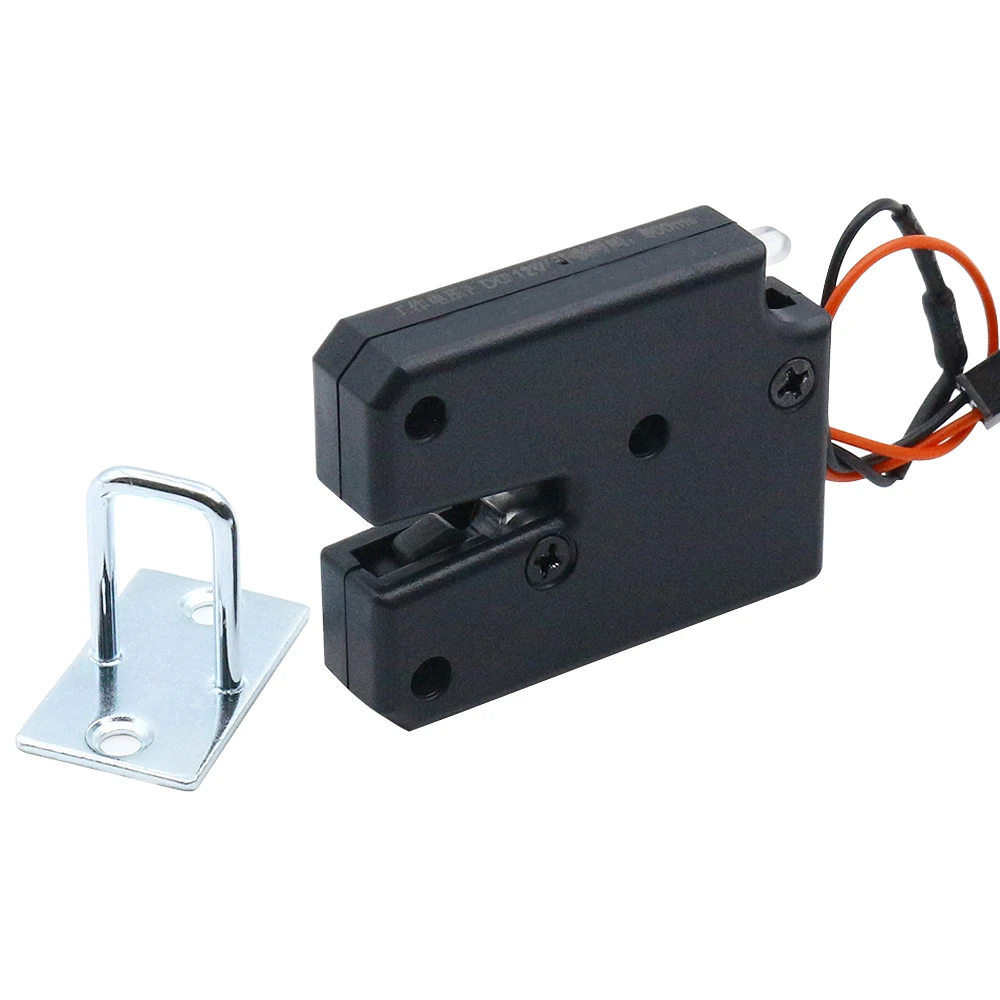

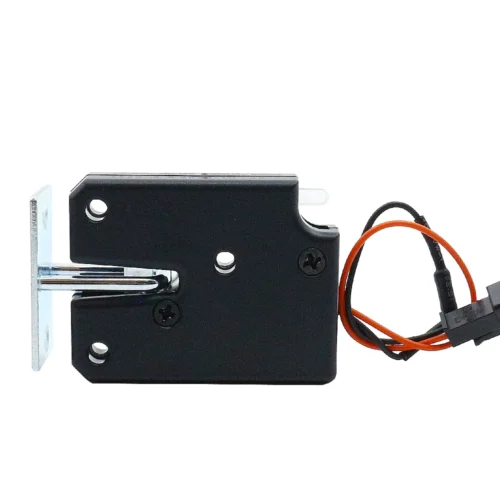

Mini Electric Cabinet Lock – DC 3V/5V/12V – Plastic with Titanium Wire – Pack of 5

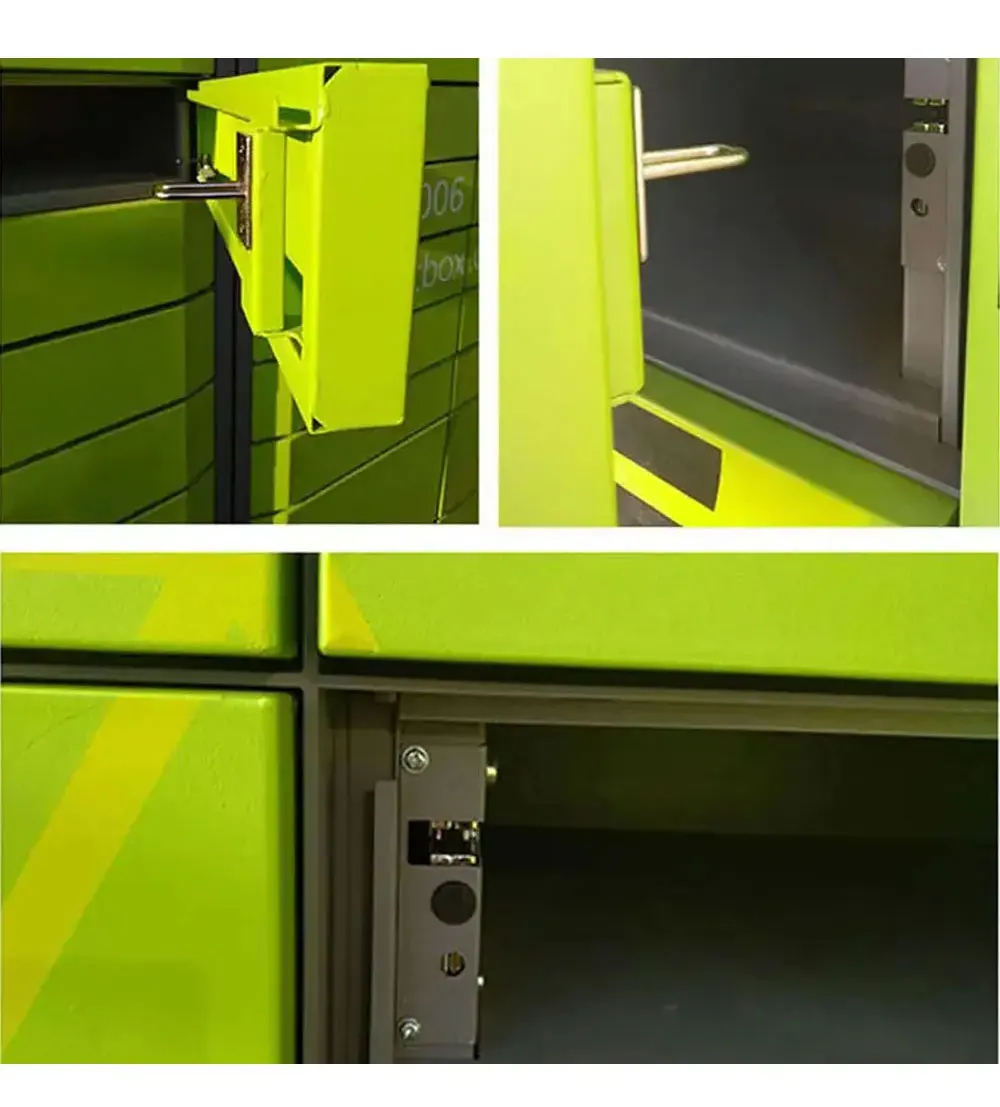

The titanium wire electric control lock uses a new type of graphene memory alloy wire as the unlocking power, and is unlocked through the principle of heat shrinkage and cold expansion. It has a simple structure, low power consumption, can be drenched, and only requires a small driving power supply. Adapt to all kinds of small cabinet doors, grid vending machines and so on.

Specifications:

Condition: 100% Brand New

Main material: ABS plastic

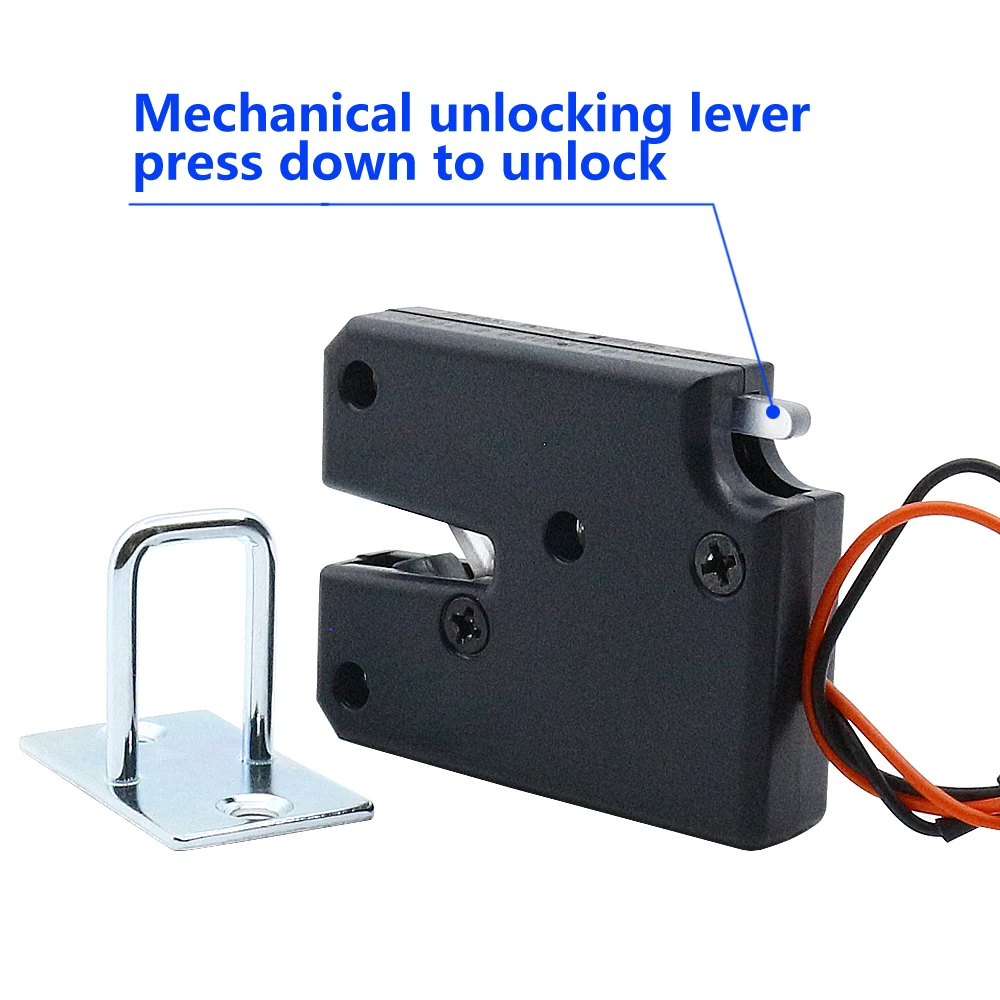

Working mode: immediately power on to unlock, manually close the door and lock

Electrical parameters: DC3V5V12V/0.8A (automatically disconnect the power after unlocking to save power)

Service life: about 6-80000 times under design load conditions

Hook strength: 50kg

Door opening thrust: ≥ 600g

Power-on time: 3V-1S, 5V-1S,12V-0.5S

Ambient temperature: -25 ℃ ~ 60 ℃

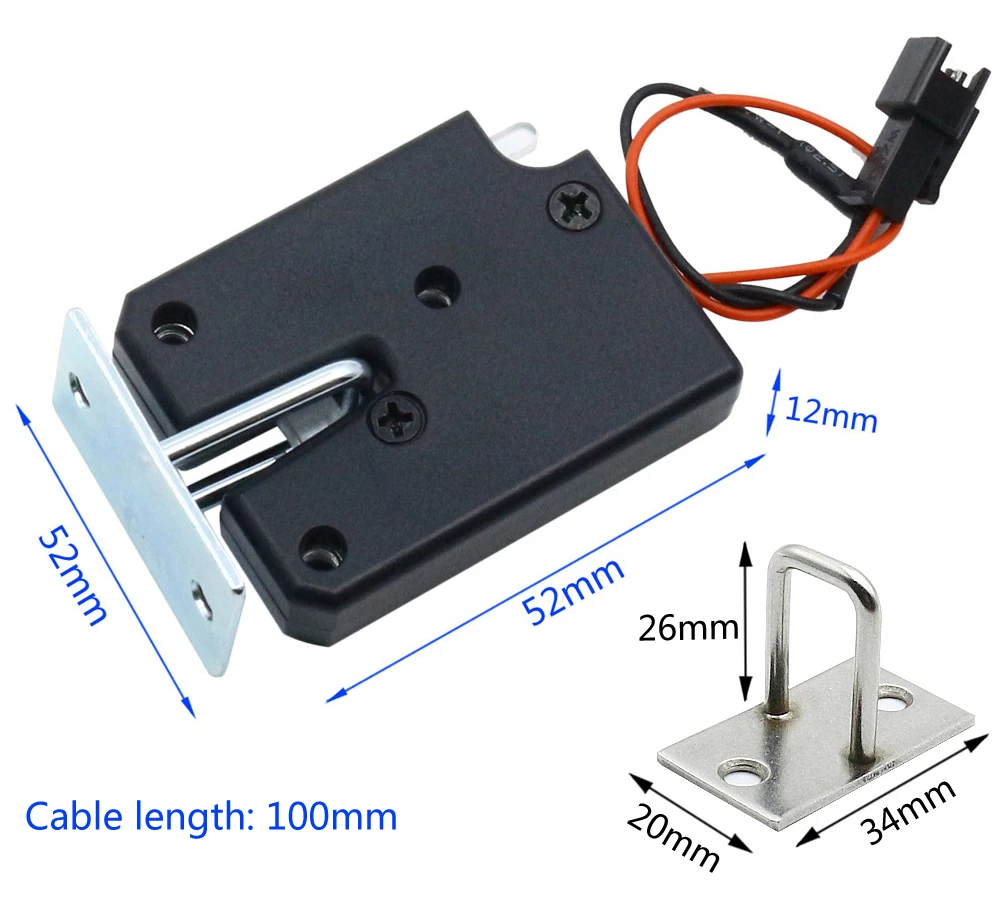

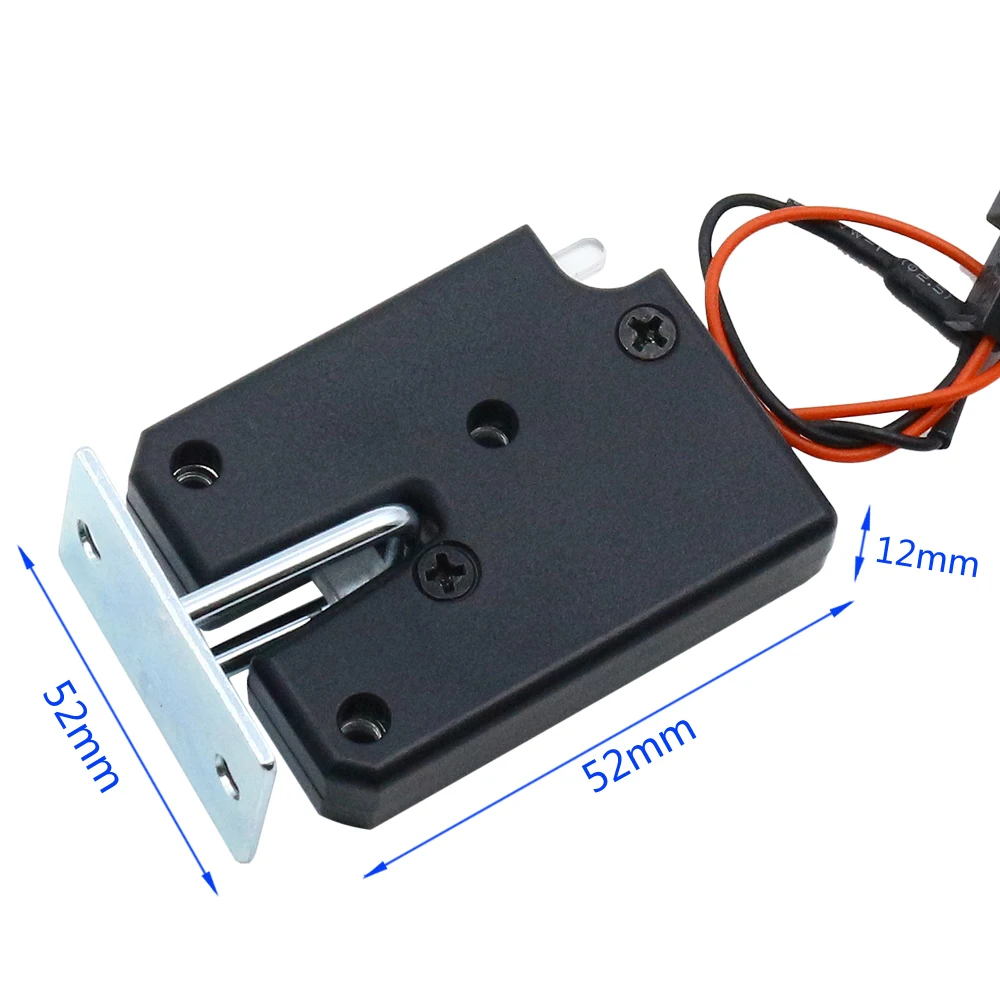

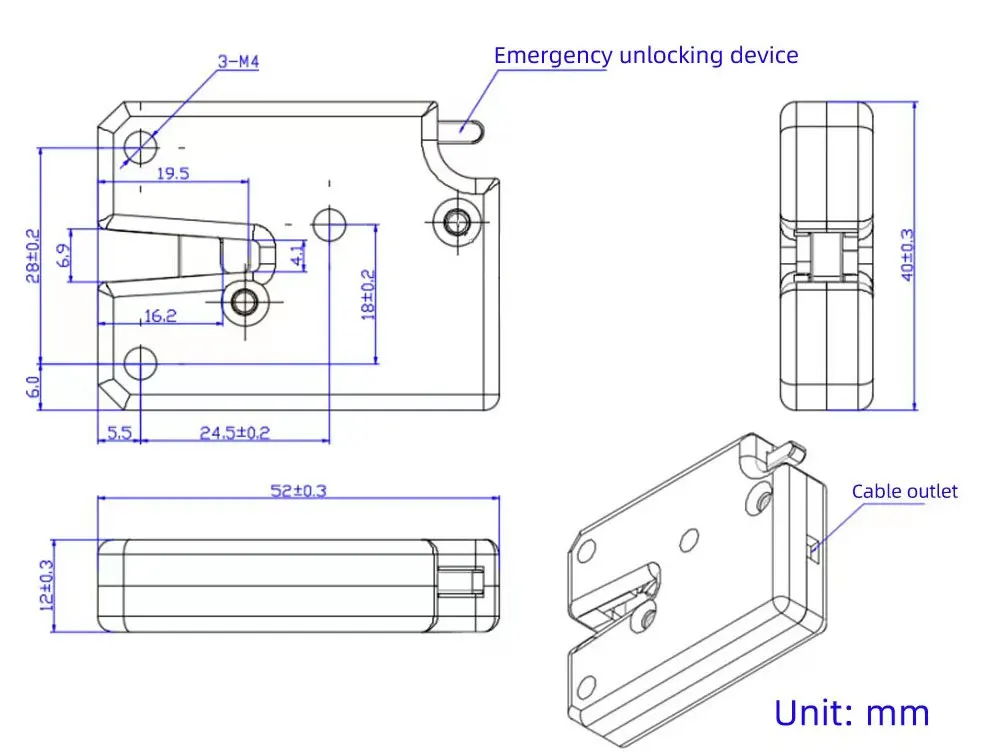

Size: 40*52*12mm

Instructions for use: Please use it strictly according to the power-on time. If the power-on time is too long, the titanium wire is prone to failure due to excessive heating. It is recommended that the interval between each unlocking is more than 5S.

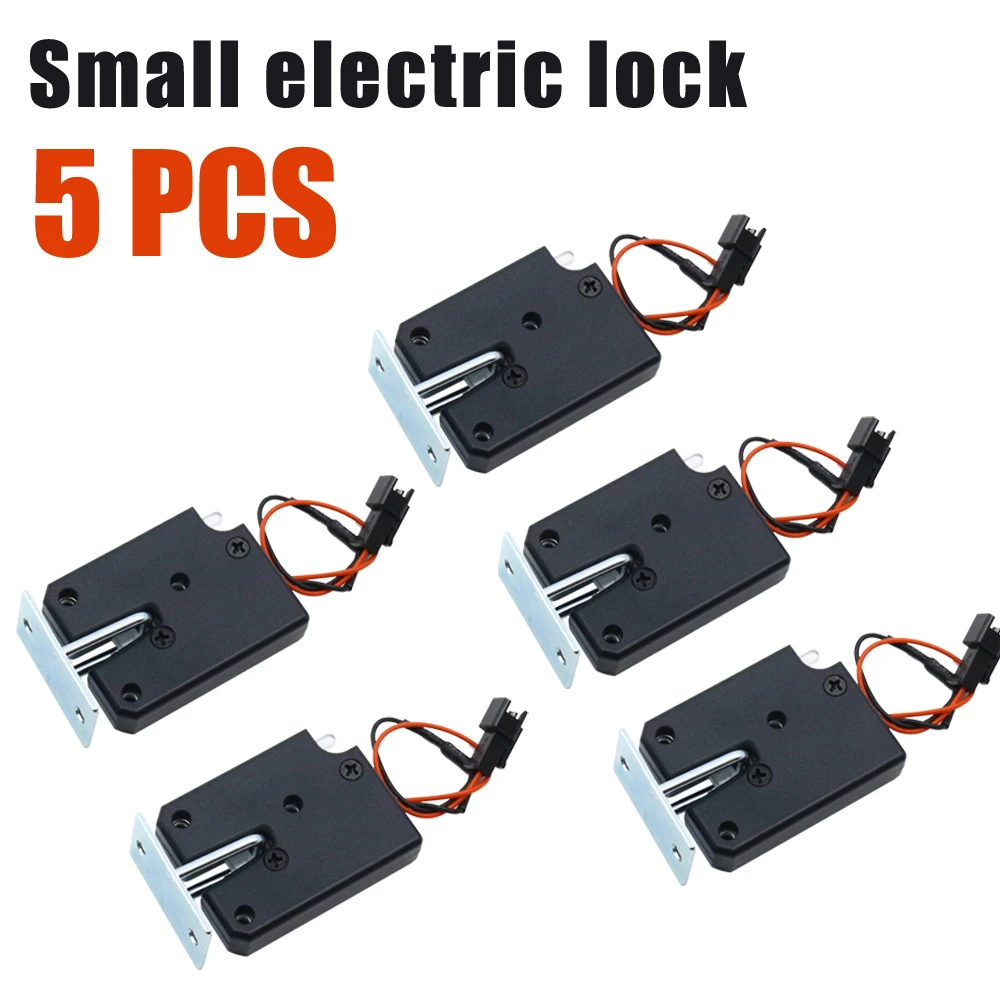

Packing list:

Titanium wire electric lock * 5
