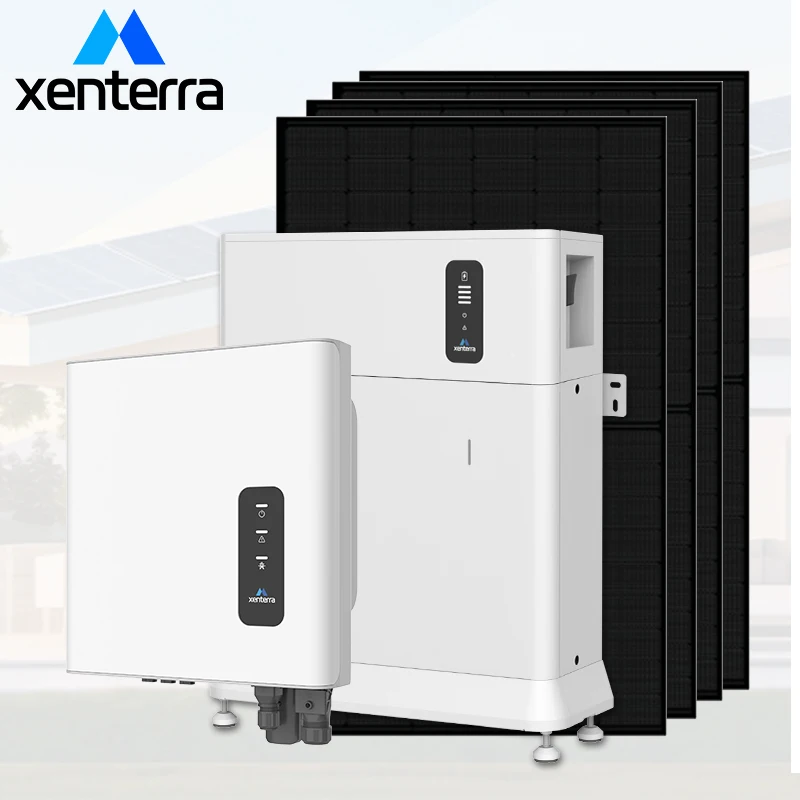

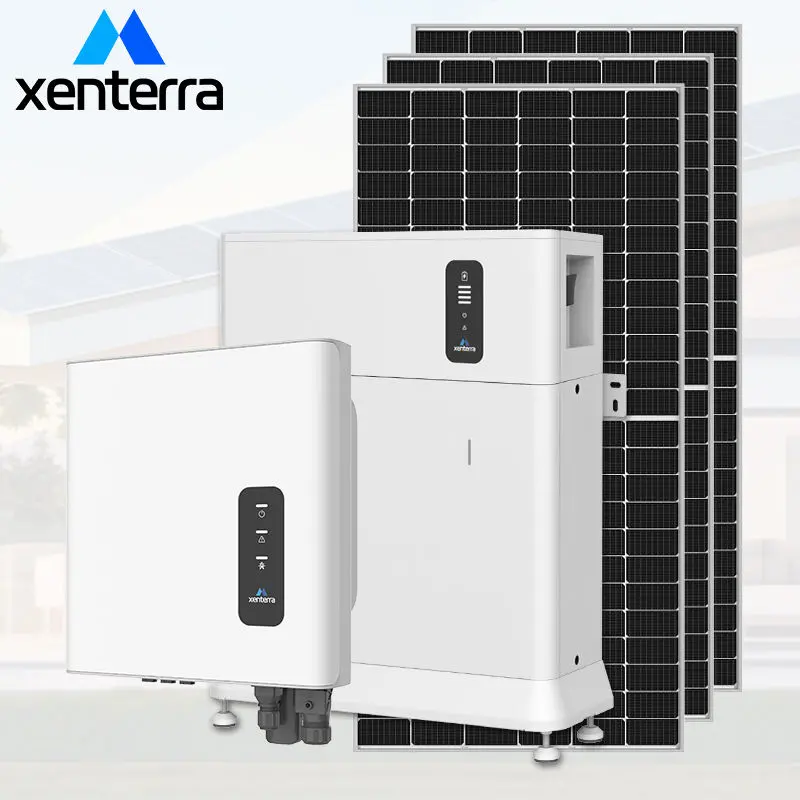

ESS 5kW Solar Energy Storage System with 550W Solar Panels and Stackable Lithium Battery

ESS 5kW Solar Energy Storage System with 550W Solar Panels and Stackable Lithium Battery - Image 2

ESS 5kW Solar Energy Storage System with 550W Solar Panels and Stackable Lithium Battery - Image 3

ESS 5kW Solar Energy Storage System with 550W Solar Panels and Stackable Lithium Battery - Image 4

ESS 5kW Solar Energy Storage System with 550W Solar Panels and Stackable Lithium Battery - Image 5

ESS 5kW Solar Energy Storage System with 550W Solar Panels and Stackable Lithium Battery - Image 6

ESS 5kW Solar Energy Storage System with 550W Solar Panels and Stackable Lithium Battery

R33 130,08

Premium quality, strong and durable.
Nationwide service and support
100% Trusted

Please provide the text you’d like me to summarize.

We are eco-friendly

We care for our customers, but we also care a lot about our planet. That's why we partner only with factories with eco-friendly manufacturing

Nationwide shipping available

Easy return & exchange

Description

Why Choose Us

Products Description

Hybrid Solar Energy Storage System

230Vac±5% Output, EU Standard EN50549/ CEI 0-21 Grid Certificated

IP65 Waterproof for Outdoor Use

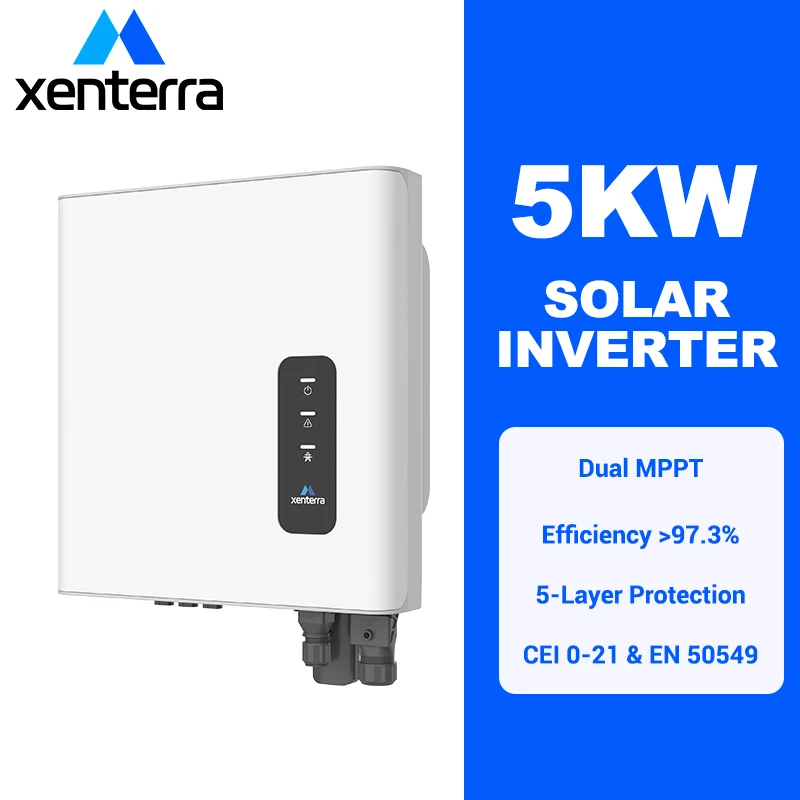

5KW Single Phase Hybrid Inverter

1. Rated Output Power: 5000W

2. Peak Power: 6000W
3. Rated Output Voltage: 220/230/240V
4. Battery Voltage Range: 450-550V
5. Max.PV Array Power: 6500w
6. MPPT Voltage Range: 90~500VDC
7. European Efficiency:97.3%
8. Dimensions:376 x 396 x 145mm
9. Weight:16kg
10.Ingress Protection Rating: IP65
11.Grid Regulation:CEI 0-21, EN 50549

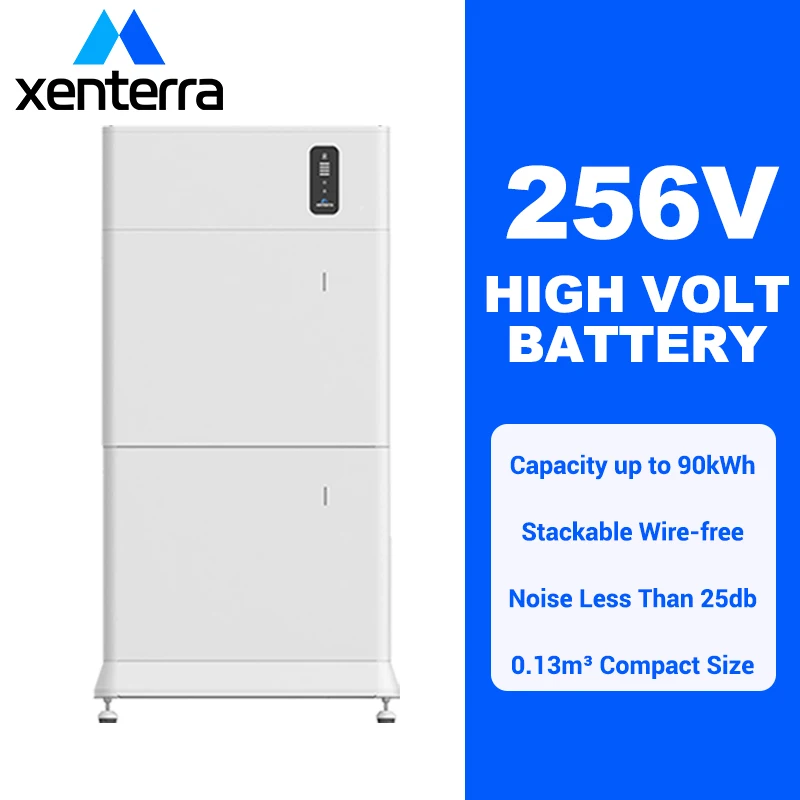

256V Stackable LiFePO₄ Battery

1. BMS Nominal Voltage:450 V
2. BMS Operating Voltage Range:450~550 V
3. Battery Module Capacity: 5KWH
4. Battery Module Size:588 x 442 x 184mm
5. Battery Module Weight :50kg
6. BMS Module Size:588 x 195 x 184mm
7. BMS Module Weight:22kg
8. Ingress Protection Rating: IP65
9. Cycle Life:25+2°C.0.5C/0.5C,EOL70%≥6000
10.Cell Technology:Lithium-iron phosphate
11.Certification: UN38.3, MSDS, Rohs, CE

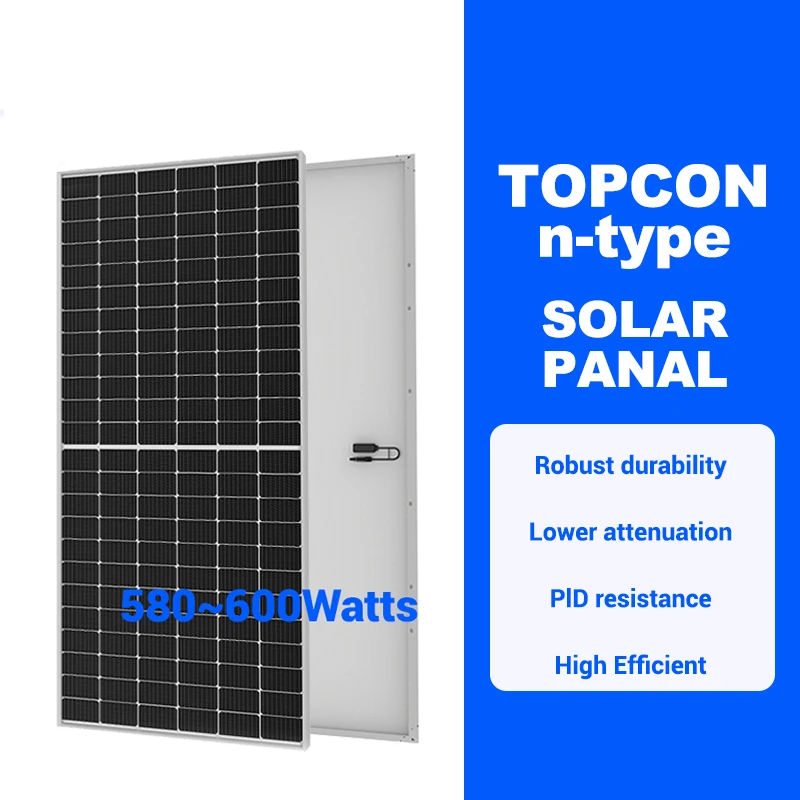

Topcon N-type Mono-crystalline Solar Panel

1. Power: 580~600W

2. Size: 2279*1134*30mm
3. Weight: 28KGS±3% Per Piece
4. Module Efficiency:23.21%
5. Maximum System Voltage:1500VDC
6. Maximum Series Fuse Rating:25A
7. Open-circuit Voltage:48.70V（NOCT）
8. Short-circuit Currect:12.07A（NOCT）
9. Max Load(Front/back):5400Mpa/2400Mpa

10.Junction Box:IP68

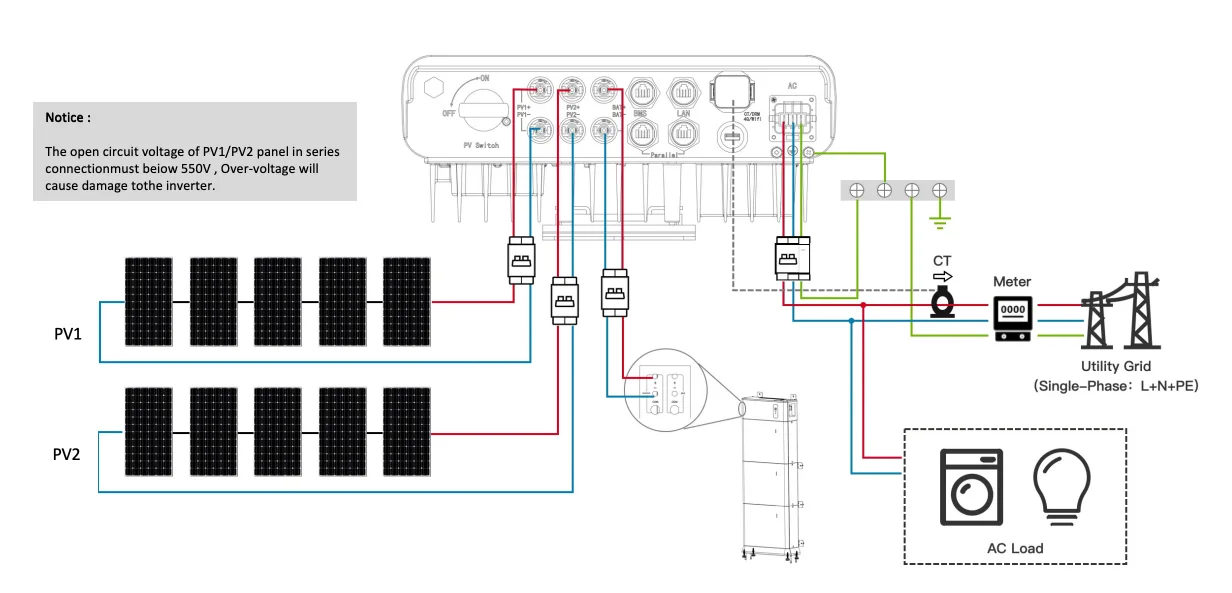

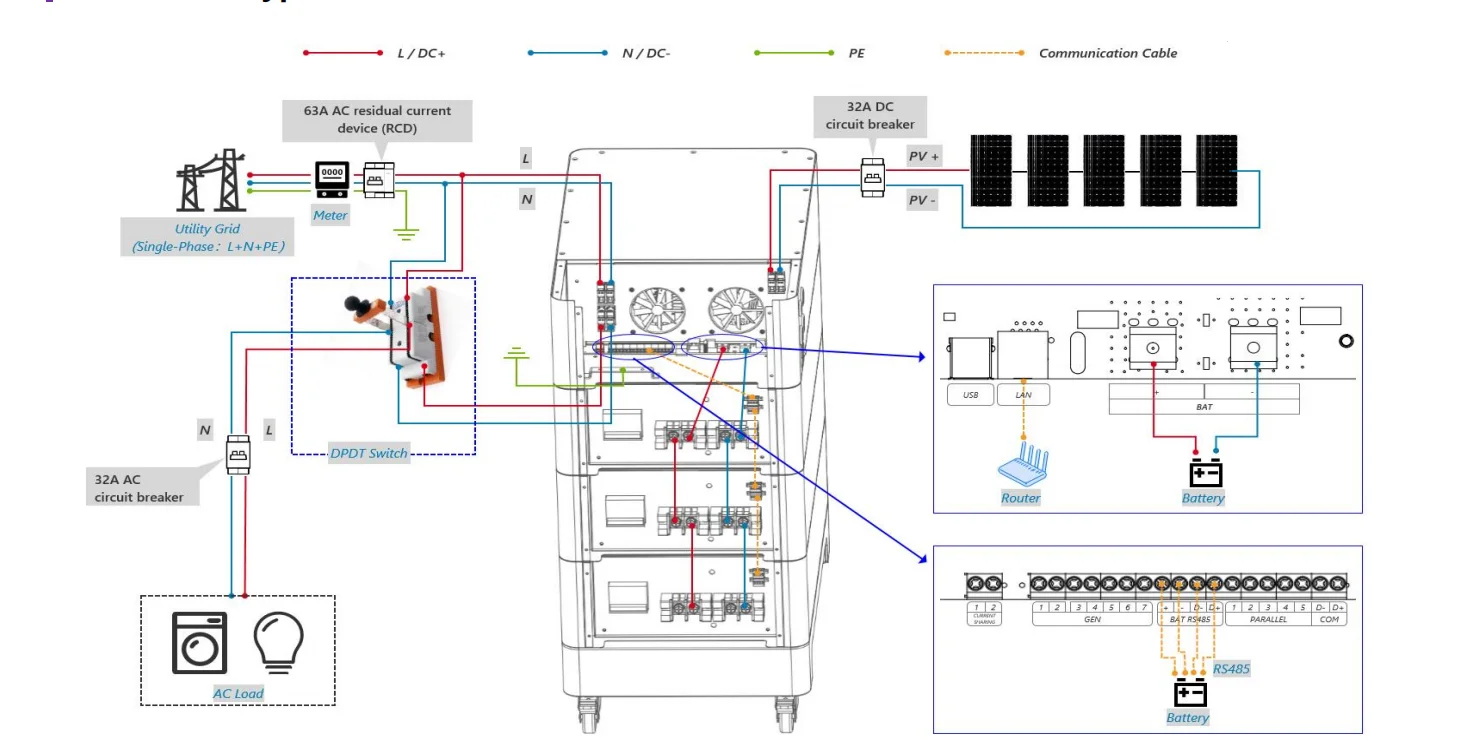

How It Work

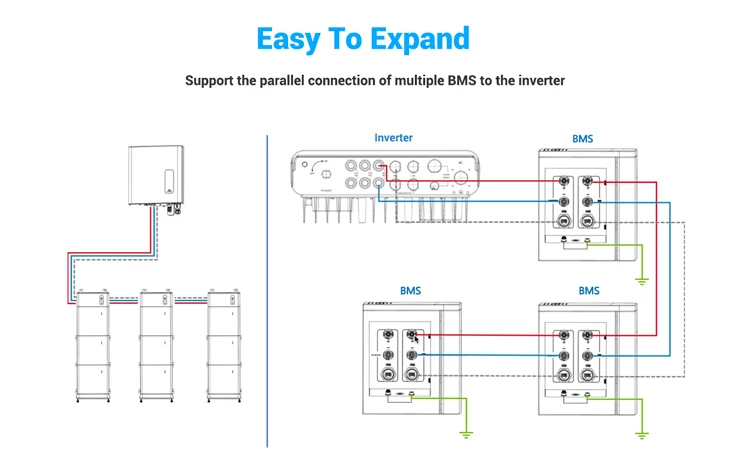

Easy To Expand

Off Grid Solar Energy Storage System

230Vac±5% Output, IP51 Dustproof for Indoor Use

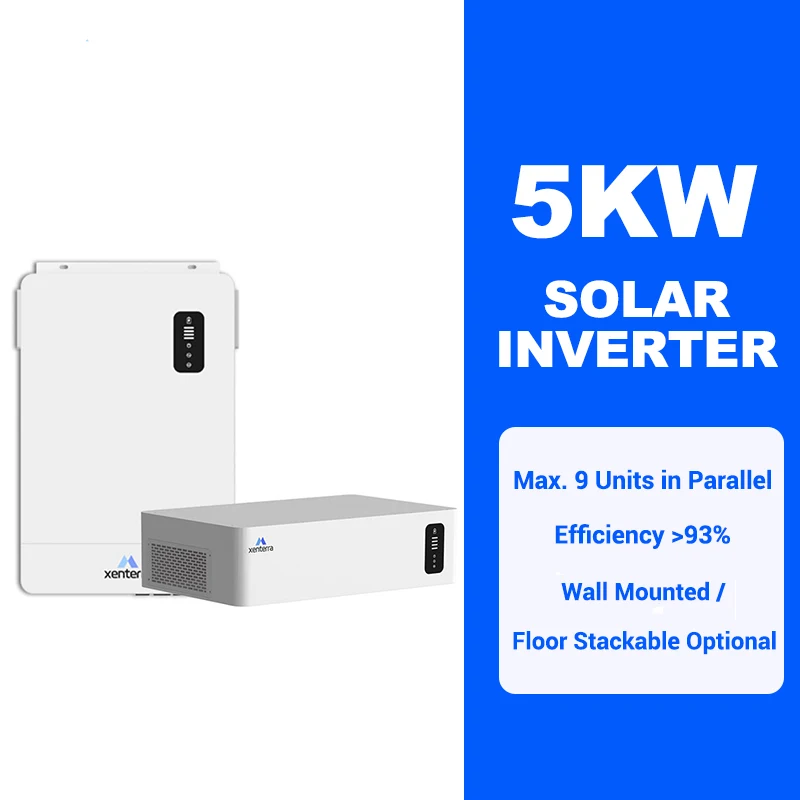

5KW Off Grid Inverter

1. Rated Output Power: 5200W
2. Peak Power: 9000W
3. Rated Output Voltage: 220/230/240V
4. Battery Voltage Range: 40-60Vdc
5. Max.PV Array Power: 6000w
6. MPPT Voltage Range: 90-430Vdc
7. European Efficiency: 93%
8. Dimensions:351*556*150mm
9. Weight:13kg
10.Ingress Protection Rating: IP51

11.Output Type:Single-phase / Three-phase In Parallel
12.Parallel Capacity: Max. 9 Units

51.2V Stackable LiFePO₄ Battery

1. Nominal Voltage: 51.2V
2. Operating Voltage Range:40~60 V
3. Scalability: Max. 7 pcs in Parallel
4. Size: 556*146*351 mm
5. Weight: 44Kg
6. Energy: 5.12kWh
7. Max. Charge & Discharge Current: 100A
8. Ingress Protection Rating: IP51
9. Cycle Life: ≥6000 @90%DOD
10.Cell Technology:Lithium-iron phosphate
11, Certification: UN38.3, MSDS

How It Work

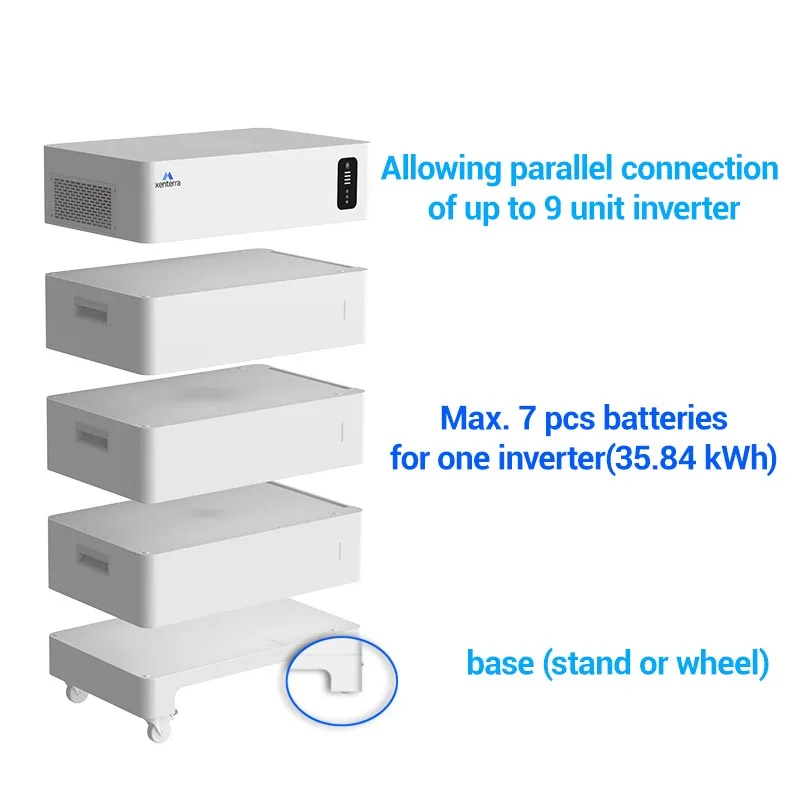

Easy To Expand

5KW Solar Power System/10KW Solar Power System/15KW Solar Power System…
Model	Description	QTY
Solar panel	600W Mono Solar Panel. •The recommended power of the photovoltaic panel is 1.2 times the rated power of the inverter	10pcs/20pcs/10pcs…
Battery	According Electricity Capacity Demands For hybrid system • Selection of battery cell quantity: Number of battery cells = Load power * backup power duration ÷ 5 ÷ 0.9 (using the one-fold method) • Selection of BMS quantity: The number of BMS control modules = the number of battery cells ÷ 3 (using the one-step method) For off grid system •Selection of battery cell quantity: Number of battery cells = Load power * backup power duration ÷ 5 ÷ 0.9 (using the one-fold method)	It depends on the electricity demand. We recommended that 5kw system can be equipped with 10kwh batteries
Inverter	5KW Inverter	1pcs/2pcs/3pcs…
