5YOA Magnetic Lock for Electronic Doors – Electromagnetic Gate Opener with Strong Suction Force

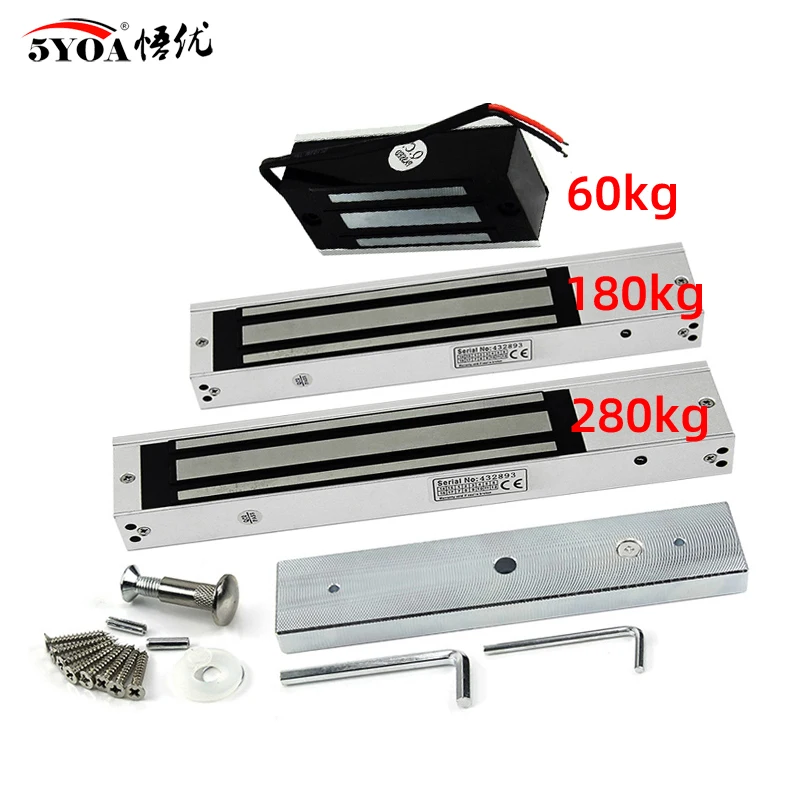

How to Choose?

60kg magnetic lock is for box case.

180kg or 280kg is for door eletric lock, if need stronger force, 280kg is recomended.

60kg Magnetic Lock

Lock dimensions: 80x40x22mm
Armature plate: 74x35x10mm
Maximum tension: 60 kg (100 lbs)
Input voltage: DC12V +10%
Operating current: 12V/300mA
Surface temperature: Within + 20 degree below ambient temperature
Suitable temperature: -10 to 55 + degrees (14-131F)
Suitable humidity: 0 to 90% relative humidity
Shell: Anodized plating processing
Lock and suction plate processing: Environmentally friendly zinc plating processing
Weight: 0.55kg
Suitable for file cabinets, small doors, and more.

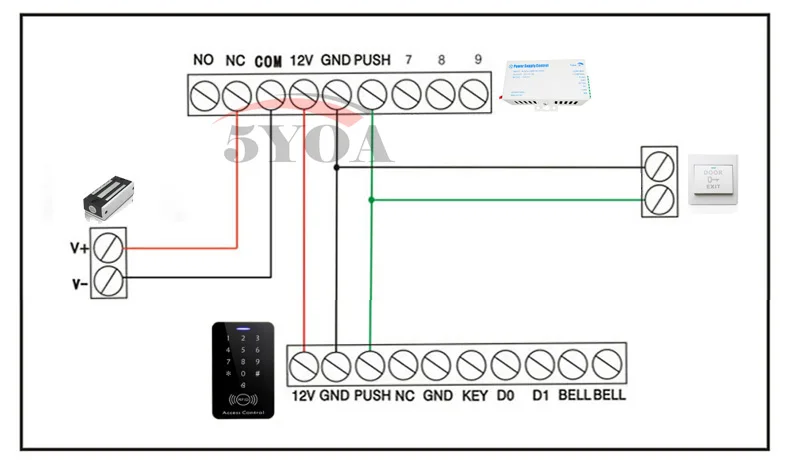

Connection diagram with access control device

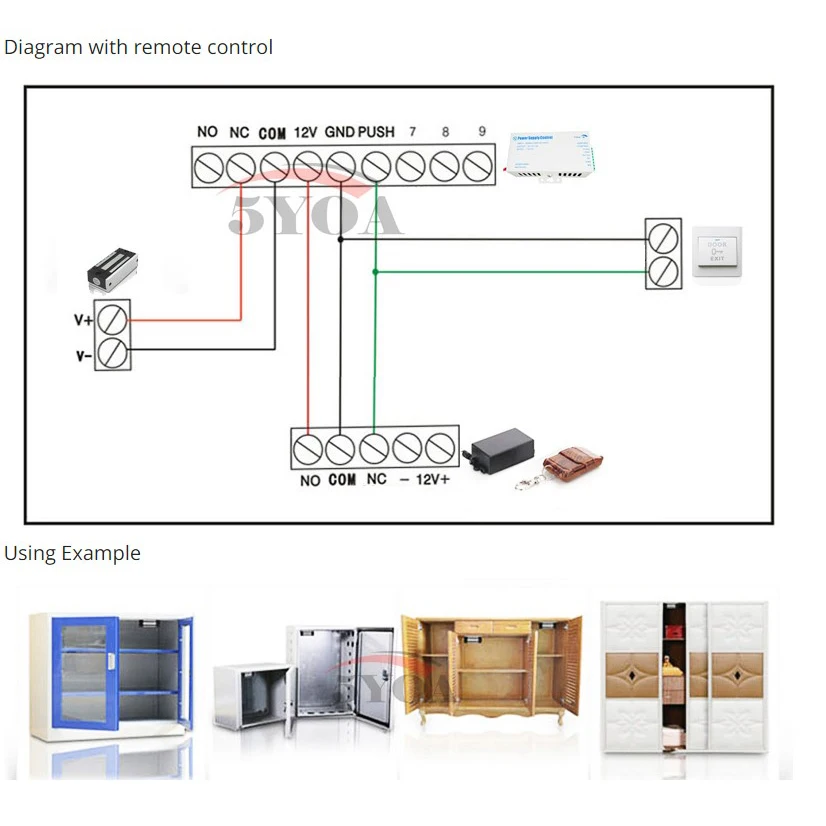

Diagram with remote control

Magnetic Locks

Features:

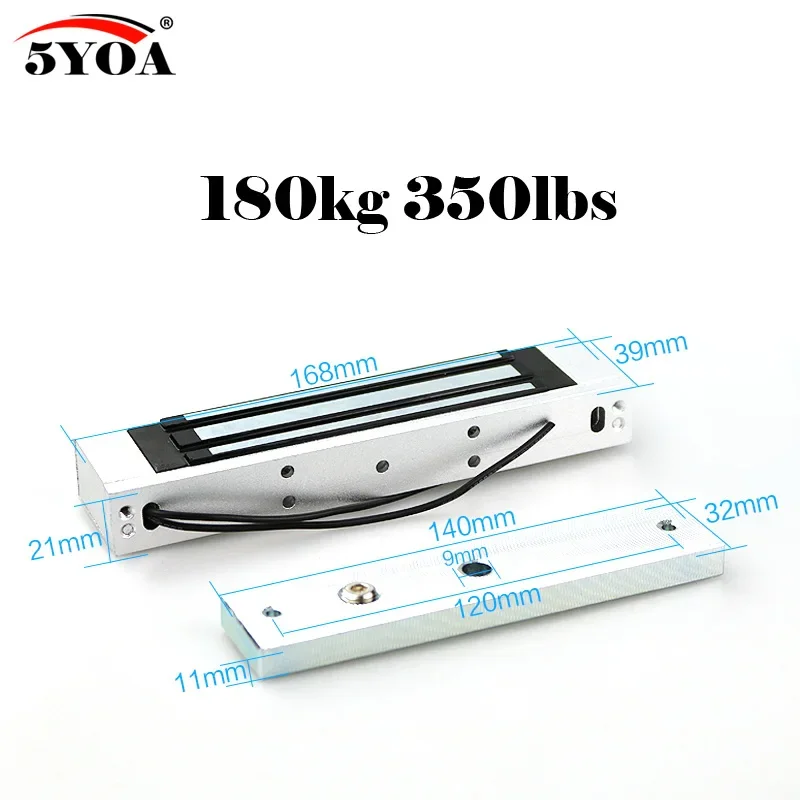

Use magnetic power to lock the door, 180kg(350lbs)/280kg(600lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden by, metal by, glass by, fireproof by, etc.

Specifications:

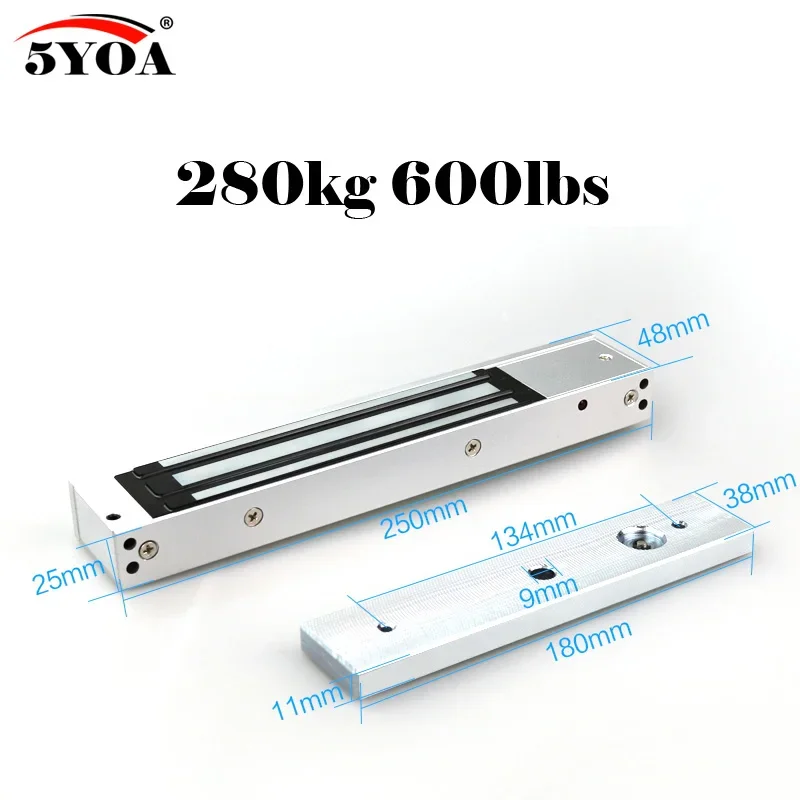

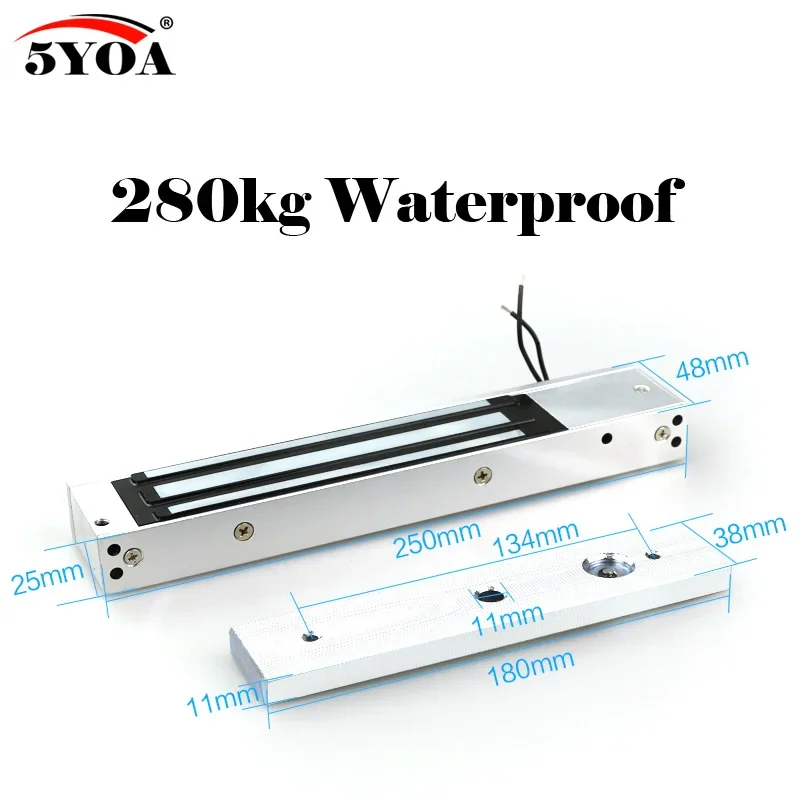

Holding force: 180kg(350lbs)/280kg(600lbs)
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock

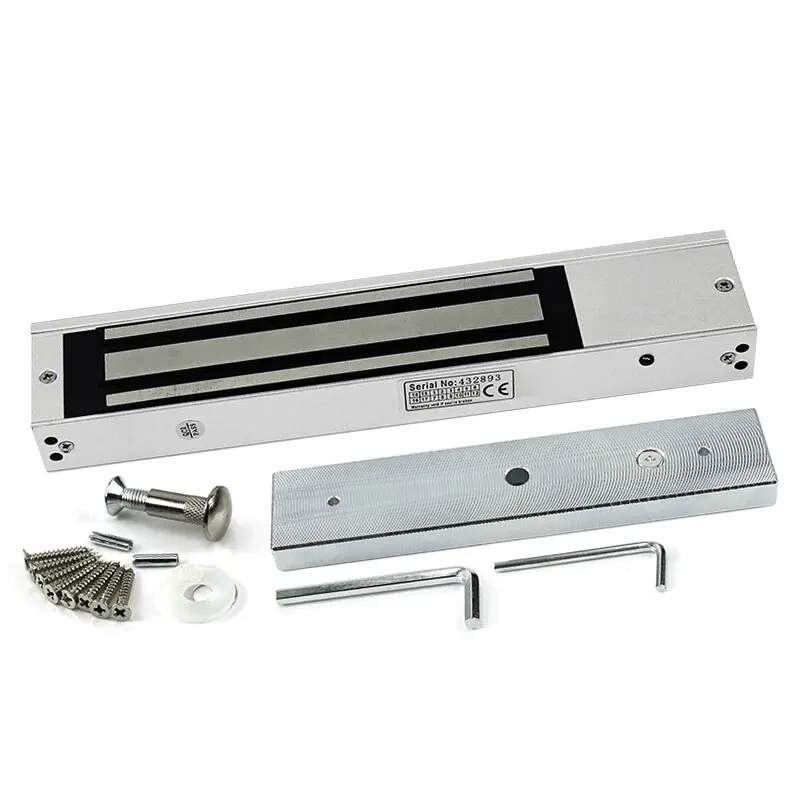

Packing list:
1 Electronic magnetic lock
1 Armature plate
1 Bag of installation kit
1 Pad

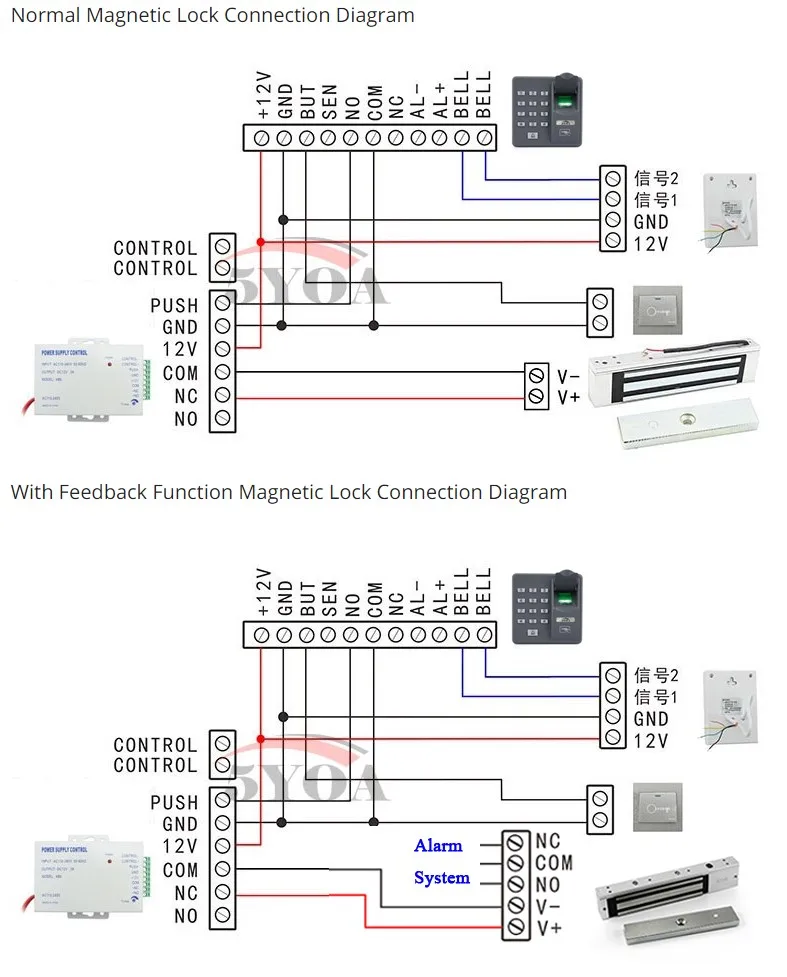

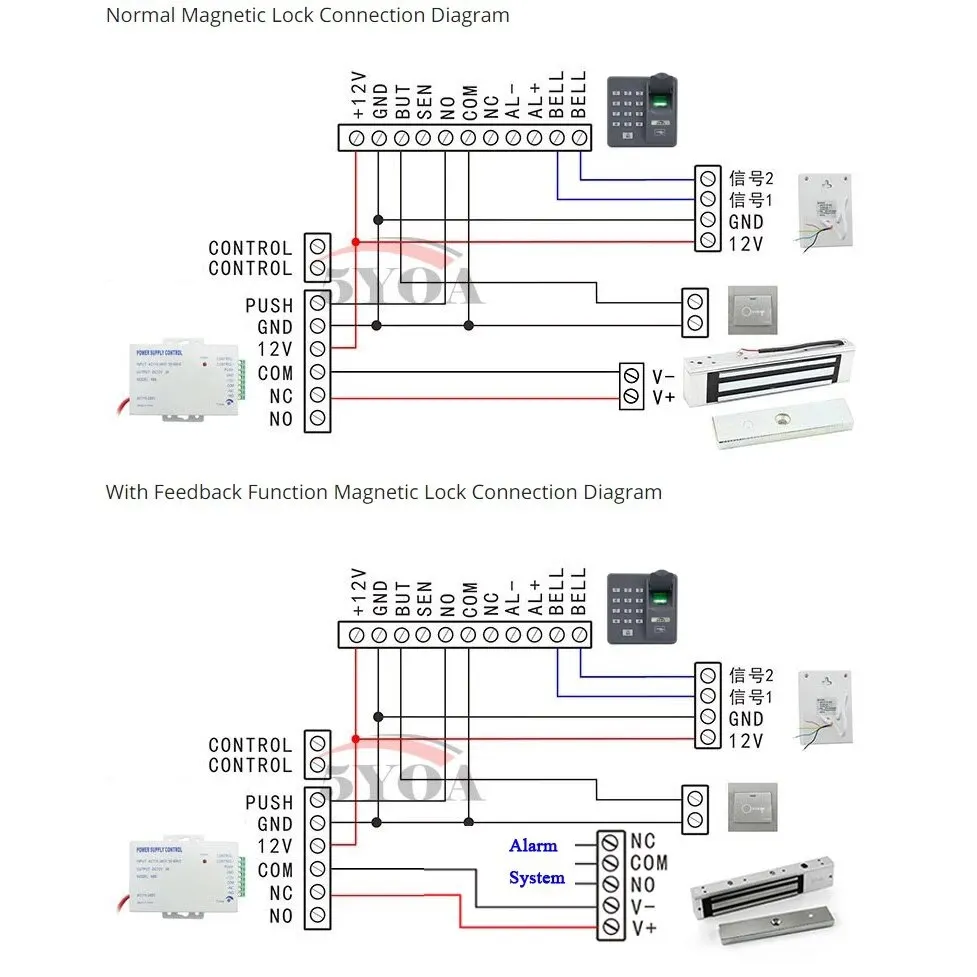

Normal Magnetic Lock Connection Diagram
